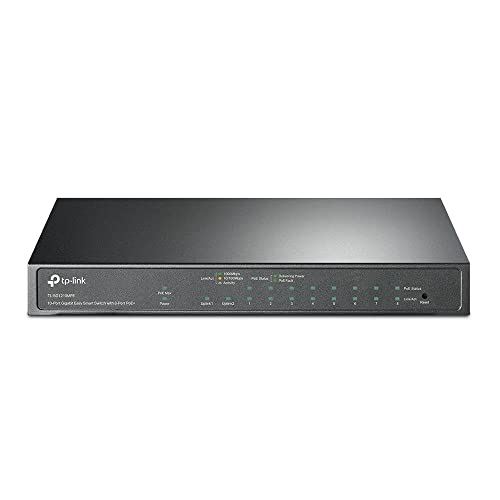

TP-LINK (TL-SG1210MPE) 10-Port Gigabit Easy Smart Switch with 8-Port POE+, 9-Port RJ45 & 1-Port Combo SFP/RJ45 UK Plug

10-Port Gigabit Easy Smart Switch with 8-Port PoE+

9 x gigabit RJ45 ports and 1 combo gigabit SFP/RJ45 port

Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable

Supports PoE power up to 123 W for all PoE ports*

Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery

Simple network set-up on top of plug-and-play connectivity

Web-based user interface and Easy Smart Configuration Utility simplify configuration

Fanless design lowers energy consumption and eliminates operating noise

What This Product Does

TP-Link TL-SG1210MPE is an easy smart switch with 9 gigabit RJ45 ports and 1 gigabit combo SFP/RJ45 port that requires no configuration. With 8 PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Professional 10-Port Switch with 8-Port PoE+ (123 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget* for the 8 PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart.

Intelligent Power Management

When total power consumption exceeds 123 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SG1210MPE are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in its locations. Having passed an array of stringent reliability tests, TL-SG1210MPE delivers switching performance you can depend on.

Rackmountable
No

Management
Smart

Number of Ports
10

RJ45 Data Transfer Rate
10/100/1000 Mbps

Interface(s)
9 x 10/100/1000 Mbps RJ45 Ports
1 x 1000 Mbps Combo SFP/RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX

PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 123 W

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z

Switching Capacity
20 Gbps

Power Supply
External Power Adapter (Output: 53.5 VDC/2.43 A)

Dimensions
209 x 126 x 26 mm

Transfer Method
Store-And-Forward

Mac Address Table
4K

Packet Forwarding Rate
14.88 Mpps

Jumbo Frame
16 KB

Quality of Service
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control

Layer Features
L2 Features:
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Management
Web-based GUI
Easy Smart Configuration Utility

Environment
Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing

Package Contents
TL-SG1210MPE
Power Adapter
Installation Guide
Rubber Feet
