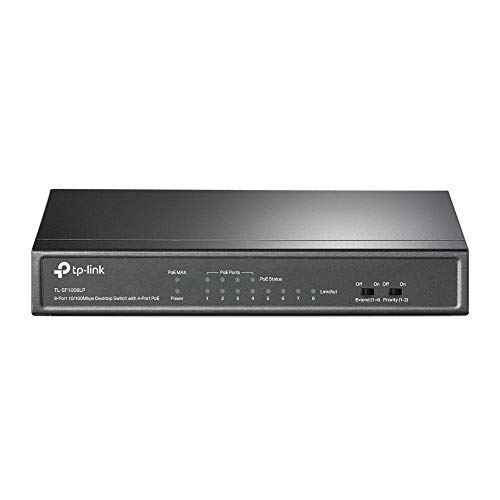

TP-LINK (TL-SF1008LP) 8-Port 10/100Mbps Unmanaged Desktop Switch 4-Port PoE Low Power, Steel Case UK Plug

8-Port 10/100Mbps Desktop Switch with 4-Port PoE

8x 10/100 Mbps RJ45 ports

4x PoE ports transfer data and power on individual cables

Works with IEEE 802.3af compliant PDs

Up to 250m data and power transmitting range under Extend Mode**

Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application

Supports PoE Power up to 41 W for all PoE ports*

Plug and play with no configuration required

Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications

Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance - Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m** - perfect for IP Camera deployment in large areas.

Priority Video - Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Intelligent Power Management

When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SF1008LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008LP delivers switching performance you can depend on.

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

RackmountableNoManagementNoNumber of Ports8Data Transfer Rate10/100 MbpsInterface(s)8 x 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)

AUTO Negotiation

AUTO MDI/MDIXPoE Ports (RJ45)Standard: 802.3 af compliant

PoE Ports: Ports 1–4

Power Supply: 41 WBandwidth1.6 GbpsPower SupplyExternal Power Adapter (Output: 53.5 V DC / 0.81 A)Dimensions(WxDxH) 171 x 98 x 27 mmTransfer MethodStore-And-ForwardMac Address Table2KAdvanced FunctionsCompatible With IEEE 802.3af Compliant PDs

Extend Mode Button (Ports 1–4)

Priority Mode Button (Ports 1–2)

Mac Address Auto-Learning and Auto-Aging

IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex ModeSecurityPhysical Security LockManagement-EnvironmentOperating Temperature: 0–40C (32–104F)

Storage Temperature: -40–70C (-40–158F)

Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensingPackage ContentsTL-SF1008LP

Power Adapter

Installation Guide
