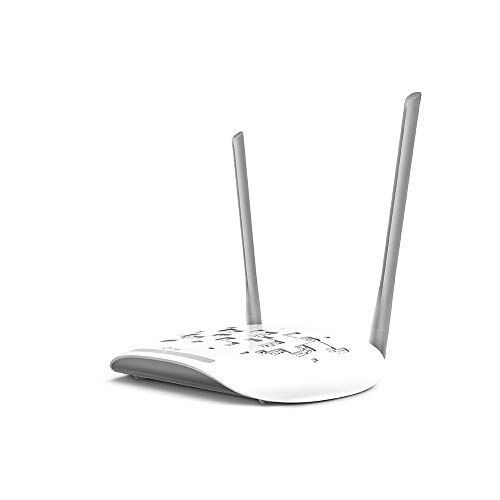

TP-LINK (TD-W9960) 300Mbps Wireless VDSL2/ADSL2+ Modem Router UK Plug

• Versatile Connectivity – With DSL and LAN/WAN ports, TD-W9960 is fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards and also works with fiber/cable access.
• Boosted Speeds – Superfast VDSL broadband speeds of up to 100Mbps together with 300Mbps Wi-Fi.
• Maximized Range – Powerful external antennas provide far-reaching wireless coverage in every direction.
• Effortless Management – Set up in minutes with the powerful Tether app or intuitive web interface and manage the network from anywhere.

Superfast VDSL Modem Router

VDSL2 technology delivers VDSL broadband speeds of up to 100Mbps simultaneously in both the upstream and downstream directions. The integrated DSL port supports all standard DSL connections* for compatibility with most ISPs.

*The TD-W9960 is compatible with VDSL2, ADSL2+, ADSL2 and ADSL.

Wi-Fi Speed Up to 300Mbps

With 300Mbps wireless speeds on the 2.4GHz band and 4 megabit LAN ports, the TD-W9960 is perfect for streaming in HD, online gaming and other bandwidth-intensive applications.

Easy Setup and Management

Set up the TD-W9960 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Control your home network whenever and wherever you are.

Powerful Antennas

Two external 5dBi high-gain antennas beam signal to every corner of your home, creating a strong, stable Wi-Fi network.

6kV Lightning Protection

Lightning protection shields TD-W9960 from electrical damage caused by thunderstorms, so even in bad weather, you can enjoy internet with peace of mind.

Secure Surfing

Parental Controls limit the online time and access of specified devices. Guest Network creates a separate Wi-Fi network for visitors, keeping your main network secure.

TypeVDSL2/ADSL2 RouterConnectivityWirelessMax Wireless Transfer Rate300 MbpsMax Wired Transfer Rate10/100 MbpsBandsSingle BandInterface(s)3 x 10/100Mbps RJ45 LAN Ports

1 x 10/100Mbps RJ45 LAN/WAN Port

1 x RJ11 PortWireless StandardsIEEE 802.11b, 802.11g, 802.11nFrequency2.400-2.4835GHzButton(s)WPS Button

RESET Button

Power ON/OFF ButtonPower Supply9VDC/0.6AAntenna(s)2 x 5dBi

Omni directional, FixedDimensions (W x D x H)181.6 x 129.7 x 36.2 mmWireless FunctionsVDSL/ADSL Modem Router

Wireless RouterSecurityNAT Firewall, SPI Firewall, Denial of Service (DoS), SYN Flooding, Ping of Death, Access Control, Service Filtering, IP and MAC Address BindingPort ForwardingVirtual Server, Port Triggering, DMZ, ALG, UPnPVPN SupportIPSec VPNManagementWeb Based Configuration (HTTP), Remote management, CWMP(TR-069), Web Based Firmware Upgrade, Diagnostic ToolsUSB Sharing-Advanced FeaturesParental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3EnvironmentOperating Temperature: 0C~40C(32F~104F)

Storage Temperature: -40C~70C(-40F~158F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensingPackage ContentsTD-W9960

External DSL Splitter

RJ-11 DSL Cable

RJ-45 Ethernet Cable

Quick Installation Guide

Power Adapter
