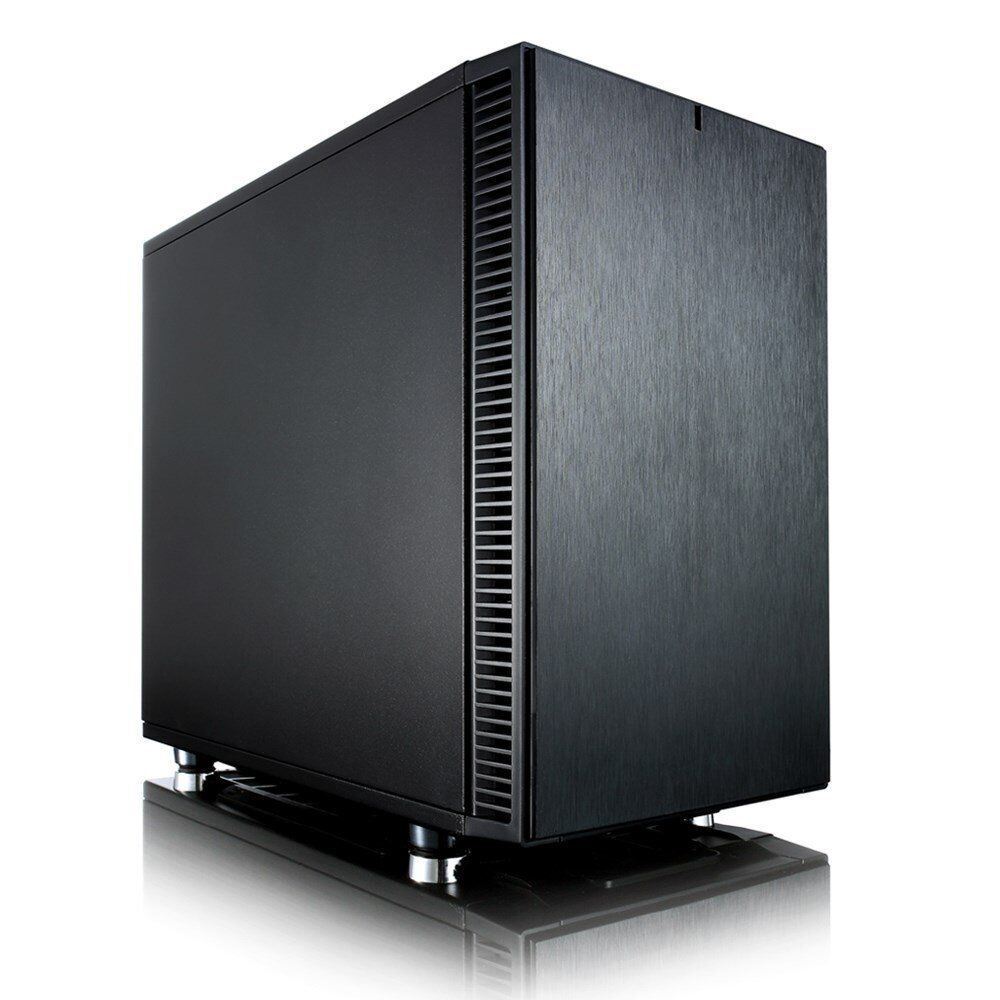

Fractal Design Define Nano S Mini-ITX Case - Black

The Define Nano S is an ITX case that features compatibility with high end, full-size components, superior sound dampening, and an ATX-like layout. The case includes two Dynamic Series fans with both bottom and front intakes protected by easy-to-clean, removable dust filters.

With its mounting capabilities for simultaneous radiators and unobstructed airflow path, the Define Nano S can cool enthusiast-level components. Equipped with Fractal Design’s signature ModuVent™ technology on the top vents and sound dampening throughout, the Define Nano S can run a powerful system quietly, a hallmark of the Define series.

FRACTAL DESIGN NANO S FEATURES

- A Define Series ITX case designed for silent computing with sound dampening and ModuVent™ technology

- User-friendly construction with superior cable management and compatibility for full-size components

- Flexible storage options with room for up to 4 drives

- Accommodates a variety of radiator sizes and includes brackets for reservoir and pump mounting

- Features two Dynamic Series fans — 1 GP-12 and 1 GP-14 — with an adapter included for motherboards with limited fan headers

- Featuring an open interior allowing an unobstructed airflow path from the front of the case to the rear exhaust

- Easy-to-clean filters on the bottom and front, spanning the PSU position, with the bottom filter ejecting from the front for easy-access.

SPECIFICATION

- ITX motherboard compatibility

- 2 expansion slots

- 2 - 3.5" HDD/2.5" SSD positions; 2 - 2.5" dedicated SSD unit positions (fits SSDs up to 13mm thick)

- 6 - Fan positions (1 Fractal Design Dynamic GP14 140mm fan + 1 Fractal Design Dynamic GP-12 120mm fan included)

- Filtered fan slots in the front and bottom (ejects from the front of the case)

- CPU coolers up to 160mm in height

- ATX PSUs up to 160mm deep (shorter PSUs recommended for easier cable management)

- Graphics cards up to 315mm in length with front fans mounted (Cards wider than the dual slot bracket are not recommended)

- 17 - 35mm of space for cable routing behind the motherboard plate

- Hook and loop fastener straps included for easy cable management

- Both side panels and rear HDD/SSD brackets feature smart captive thumbscrews

- Dense sound dampening material on front, left and right side panels

- ModuVent™ on top of case for further silent computing or additional ventilation

- Colours available: Black

- Case dimensions (WxHxD): 203 x 330 x 400mm

- Case dimensions - wtih feet/protrusions/screws: 203 x 344 x 412mm

- I/O Panel: 2 USB 3.0, Audio in/out, Power button with LED (blue), HDD activity LED (blue), Reset button

- Net weight: 4.6 kg

- Case volume: 26.80 litres

- Package dimensions (WxHxD): 275 x 485 x 420mm

- Package weight: 6.2 kg

- Cooling System: Front: 2 – 120/140 mm fans (included is 1 Fractal Design Dynamic GP14 fan, 1000 RPM speed), Rear: 1 – 120 mm fan (included is 1 Fractal Design Dynamic GP12 fan, 1200 RPM speed), Top: 2 - 120/140 mm fan (not included), Bottom: 1 – 120 mm fan (not included), Dust filters: Bottom and front intakes

- Watercooling Compatibility: Front – 120/240mm, 140/280mm (max width 147, length 312; some radiators extend beyond the screw holes), Top – 120/240mm (max component height on motherboard 35mm. Big heatsinks on RAM or power regulators around CPU could conflict with this restriction), Bottom – 120mm (max thickness & length: 85mm x 160mm)

- Reservoir Support: Adjustable mounting brackets allow for almost any rectangular mounting screw pattern. Maximum distance between the mounting bracket screw positions: 270mm height / 80mm width.
