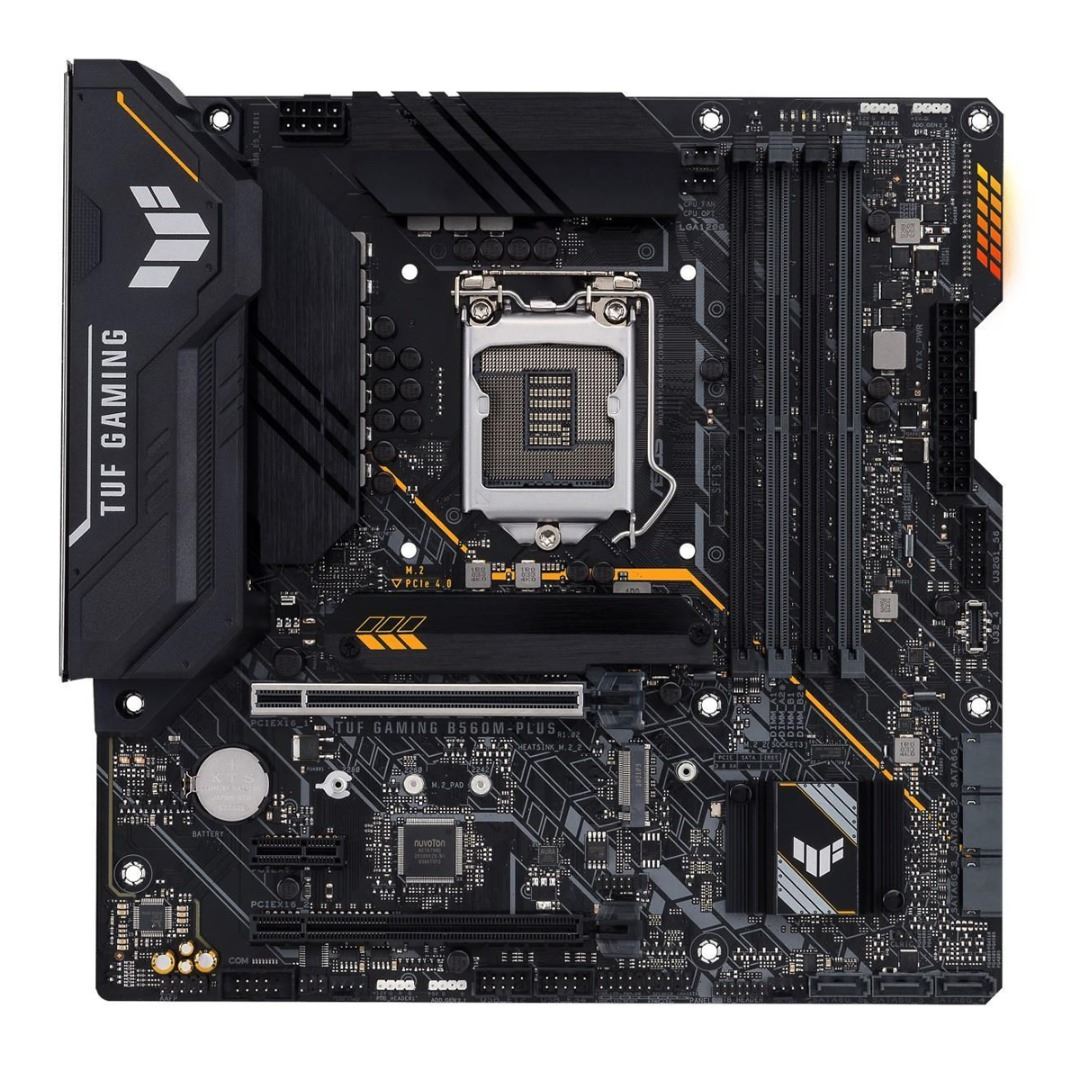

Asus TUF GAMING B560M-PLUS WIFI, Intel B560, 1200, Micro ATX, 4 DDR4, HDMI, DP, 2.5G LAN, AX Wi-Fi, RGB, 2x M.2

Intel® B560 (LGA 1200) mATX motherboard with PCIe 4.0, two M.2 slots, 8+1 Power stages, Realtek 2.5Gb Ethernet, Intel® Wi-Fi 6, DisplayPort 1.4, HDMI 2.0, USB 3.2 Gen 2, USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support, Aura Sync RGB Lighting, Addressable RGB

Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors

Enhanced power solution: 8+1 power stages, 6-layer PCB, ProCool socket, and durable capacitors for stable power delivery

Comprehensive cooling: VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

Next-gen connectivity: PCIe 4.0, Realtek 2.5Gb Ethernet, Intel® Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ 4 support

Made for online gaming: Intel Wi-Fi 6, Realtek 2.5 Gb Ethernet, TUF LANGuard, and Turbo LAN technology

Two-way AI Noise-Cancelation: Reduce background noise from the microphone and audio output for crystal-clear communication in games or video conferences

MyASUS: Offer a variety of support features such as helping to contact the customer service center, optimize networking performance and collaborate with your mobile phone through Link to MyASUS.

Durable. Stable. Reliable.

ASUS TUF GAMING B560M-PLUS WIFI takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid, stable performance for marathon gaming. Aesthetically, TUF GAMING H570-PRO WIFI sports the new TUF Gaming logo, and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.

Rock-Solid Performance

With upgraded power delivery and comprehensive cooling options to drive the 11th and 10th Gen Intel Core processors, plus support for faster memory and storage, TUF GAMING B560M-PLUS series motherboards are the perfect foundation for your next high-core-count battle rig.

DrMOS

The onboard VRM of TUF GAMING B560M-PLUS series motherboards utilize 8+1 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 11th Gen Intel Core processors demand.

Easy PC DIY

TUF GAMING motherboards are designed to be easy to set up and configure just the way you want -even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF GAMING motherboards give you everything you need to build your dream gaming rig without adding complexity.

Build with Confidence

TUF GAMING Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.

Immersive Gaming

TUF GAMING B560M-PLUS series motherboards provide a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.

Intel WiFi 6

The Intel WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

Exclusive 2.5 Gigabit Ethernet

2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.

Motherboard Type
Desktop

Form Factor
Micro ATX

Socket
Intel 1200

Chipset
Intel B560

RAM Technology
DDR4 (Dual Channel)

RAM Slots
4 x DIMM

RAM Speeds
Up to 5000(OC)

Maximum Memory
128GB

Graphics
Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports
1 x HDMI
1 x DisplayPort

Multi-GPU Support
-

PCI/PCI Express
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
1 x PCIe 3.0 x1

Storage
6 x SATA III
1 x M.2 (2242/2260/2280) - PCIe*
1 x M.2 (2242/2260/2280) - SATA & PCIe

*This slot is only active with 11th gen CPUs

RAID
-

Wireless
Intel Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.0 or later

LAN
2.5GB LAN

Audio
Realtek ALC 897 7.1 Surround Sound High Definition Audio

USB Ports Supported
2 x USB 3.2 Gen2 Type-A (at back)
1 x USB 3.2 Gen1 Type-C (at back)
4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
8 x USB 2.0 (4 at back, 4 at mid-board)
1 x Front Panel USB 3.2 Gen1 Type-C connector

Back Panel I/O Ports
2 x USB 3.2 Gen2 Type-A
3 x USB 3.2 Gen1 (2 Type-A, 1 Type-C)
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x ASUS Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out

Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
6 x SATA 6Gb/s
1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
2 x AURA Addressable Gen2
2 x AURA RGB

1 x Clear CMOS
1 x COM Port
1 x Front Audio
1 x 20-3 pin System Panel
1 x Thunderbolt

Accessories
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x M.2 Rubber Package
1 x M.2 SSD screw package
1 x TUF Gaming sticker
