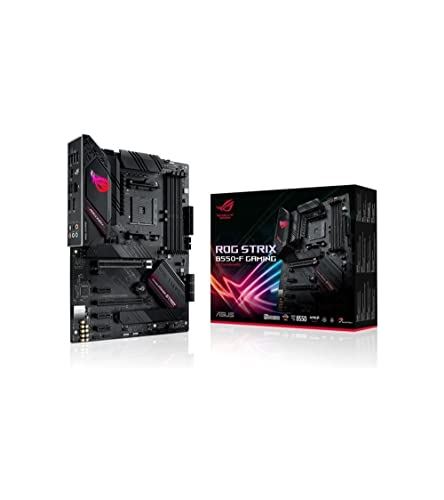

ASUS ROG STRIX B550-F GAMING AMD B550 Socket AM4 ATX

Advance Your Gaming Immersion ROG Strix B550-F Gaming is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience. PCIe 4.0-Ready ROG Strix B550-F Gaming features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost. All-round Performance ROG Strix B550-F Gaming provides robust power delivery to fuel Ryzen's cores, comprehensive cooling, and support for faster memory — so it has everything you need to load up your build with high-performance components for playing in the big leagues. Play Your Own Style The cyberpunk-inspired aesthetics of ROG Strix B550-F Gaming are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style. UNDENIABLY ROG STRIX ROG Strix B550-F Gaming embodies the ROG spirit with eye-catching aesthetics, including the next-generation distorted ROG eye logo and recessed cybertext patterning etched on the I/O shroud. These new designs move ROG Strix boldly into the future, while clearly reflecting the series' gaming roots. ROG Gives You More ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want. UEFI BIOS The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.

Specifications

Internal I/O

Number of M.2 (M) slots 2

Thunderbolt headers 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors 1

12V power connector Yes

Supported storage drive interfaces M.2,SATA III

USB 2.0 connectors 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors 1

Number of SATA III connectors 6

Number of EATX power connectors 1

Number of chassis fan connectors 3

EPS power connector (8-pin) Yes

CPU fan connector Yes

Technical details

Motherboard chipset family AMD

Motherboard chipset AMD B550

PC health monitoring CPU, Fan

Parallel processing technology support 2-Way CrossFireX

HDMI version 2.1

Cooling type Active

Motherboard form factor ATX

Component for PC

Audio

Audio output channels 7.1 channels

Performance

Number of HDDs supported 6

Supported storage drive types HDD & SSD

Windows operating systems supported Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64

Motherboard chipset family AMD

Motherboard chipset AMD B550

RAID levels 0,1,10

PC health monitoring CPU, Fan

Cooling type Active

Audio output channels 7.1 channels

Motherboard form factor ATX

Component for PC

Processor

Processor manufacturer AMD

Compatible processor series AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9

Maximum number of SMP processors 1

Processor socket Socket AM4

Memory

Number of memory slots 4

Memory slots type DIMM

Supported memory types DDR4-SDRAM

Supported memory clock speeds 2133,2400,2666,2800,3000,3200,3466,3600,3866,4000,4133,4400,4600 MHz

Maximum internal memory 128 GB

Storage controllers

Number of HDDs supported 6

Supported storage drive types HDD & SSD

Supported storage drive interfaces M.2,SATA III

RAID levels 0,1,10

Graphics

Parallel processing technology support 2-Way CrossFireX

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1

DisplayPort version 1.2

USB 2.0 ports quantity 2

S/PDIF out port Yes

Microphone in Yes

Headphone outputs 1

HDMI version 2.1

HDMI ports quantity 1

Ethernet LAN (RJ-45) ports 1

DisplayPorts quantity 1

Network

Ethernet LAN Yes

Wi-Fi No

Wake-on-LAN ready Yes

LAN controller Intel I225-V

Ethernet interface type 2.5 Gigabit Ethernet

Bluetooth Yes

Bluetooth version 5.0

Features

Power source type ATX

Windows operating systems supported Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64

Motherboard chipset family AMD

Motherboard chipset AMD B550

PC health monitoring CPU, Fan

Cooling type Active

Audio output channels 7.1 channels

Motherboard form factor ATX

Component for PC

Expansion slots

Number of M.2 (M) slots 2

PCI Express x1 (Gen 3.x) slots 3

PCI Express x16 (Gen 3.x) slots 1

PCI Express slots version 3.0,4.0

PCI Express x16 (Gen 4.x) slots 1

BIOS

BIOS type UEFI AMI

BIOS memory size 256000 Mbit

Power

Power source type ATX

Software

Windows operating systems supported Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64

Drivers included Yes

Weight & dimensions

Width 305 mm

Depth 244 mm

Packaging content

Manual Yes

Drivers included Yes

Cables included SATA
