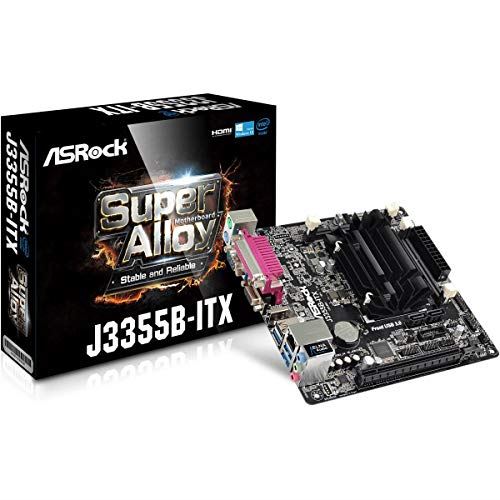

Asrock J3355B-ITX, Integrated Intel Dual-Core J3355, Mini ITX, DDR3 SODIMM, VGA, HDMI, Serial & Parallel Port

• ASRock Super Alloy
• Intel® Dual-Core Processor J3355 (up to 2.5 GHz)
• Supports DDR3/DDR3L 1866 SO-DIMM
• 1 PCIe 2.0 x16 (x2 mode)
• Graphics Output Options: D-Sub, HDMI
• 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
• 2 SATA3
• 5 USB 3.0 (2 Front, 3 Rear)
• Supports Full Spike Protection, ASRock Live Update & APP Shop

High Density Glass Fabric PCB
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

D-Sub, HDMI, Parallel, COM
Packed with a COM port Printer port D-Sub HDMI combo. Plus the HDMI port supports Full HD 1080p Blu-ray (BD) playback.

HEVC 10-bit Decoding
Supports HEVC 10-bit decoding to provide substantially improved video quality and higher bit depth video experience. The 10-bit content supports up to 1.07 billion color palette, it can have more detail of image, and greater range between the brightest and darkest part of the image.

Intel® Dual-Core Processor J3355 (Up to 2.5 GHz)
Improved performance, lower power consumption, and new multimedia capabilities.

Supports Standard
& Low Voltage SO-DIMMsCapable of supporting both standard and low-voltage SO-DIMMs.

16GB Memory Support
Each slot supports 8GB memory modules, thus delivering a maximum capacity up to 16GB.

Power Gear
Toggle between three operational modes (Eco, Normal and Sport) to maximize performance or conserve energy. Use Eco mode for saving power during torrent downloads or other light activities, normal mode for regular tasks such as web surfing or word processing, and then shift to Sport mode to take on heavy jobs such as gaming or 4K video playback.

Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.


Motherboard Type - Desktop

Form Factor - Mini ITX

Socket - Embedded CPU

CPU - Intel Dual-Core Processor J3355 (up to 2.5 GHz)

RAM Technology - DDR3/DDR3L SO-DIMM (Dual Channel)

RAM Slots - 2 x DIMM

RAM Speeds - 1866/1600/1333 MHz

Maximum Memory - 16GB

Graphics - Integrated Intel HD Graphics 500: 12 EUs inside (Up to 700MHz)

Graphics Ports

1 x VGA
1 x HDMI

PCI Express - 1 x PCIe 2.0 x16

Storage - 2 x SATA III

LAN - GB LAN

Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)

USB Ports

5 x USB 3.0 ports (3 at back, 2 at mid-board)
5 x USB 2.0 ports (1 at back, 4 at mid-board)

Back Panel I/O Ports
1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x Parallel Port
1 x Serial Port
1 x D-Sub
1 x HDMI
1 x USB 2.0 Port
3 x USB 3.0 Ports
1 x RJ-45 LAN
HD Audio Jacks

Internal I/O Connectors
2 x USB 2.0 Connectors
1 x USB 3.0 Connector
1 x COM Port Header
1 x Chassis Intrusion
1 x TPM
1 x CPU Fan
1 x Chassis Fan
1 x 24 pin ATX
1 x Front Audio

Accessories
Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
